• Two-seater, powder-coated carbon steel spaceframe chassis, with integral safety cell complying with FIA Production Sports Car Safety Structure Test. Aluminum honeycomb front crash structure complying with FIA Production Sports Car Crash Test.

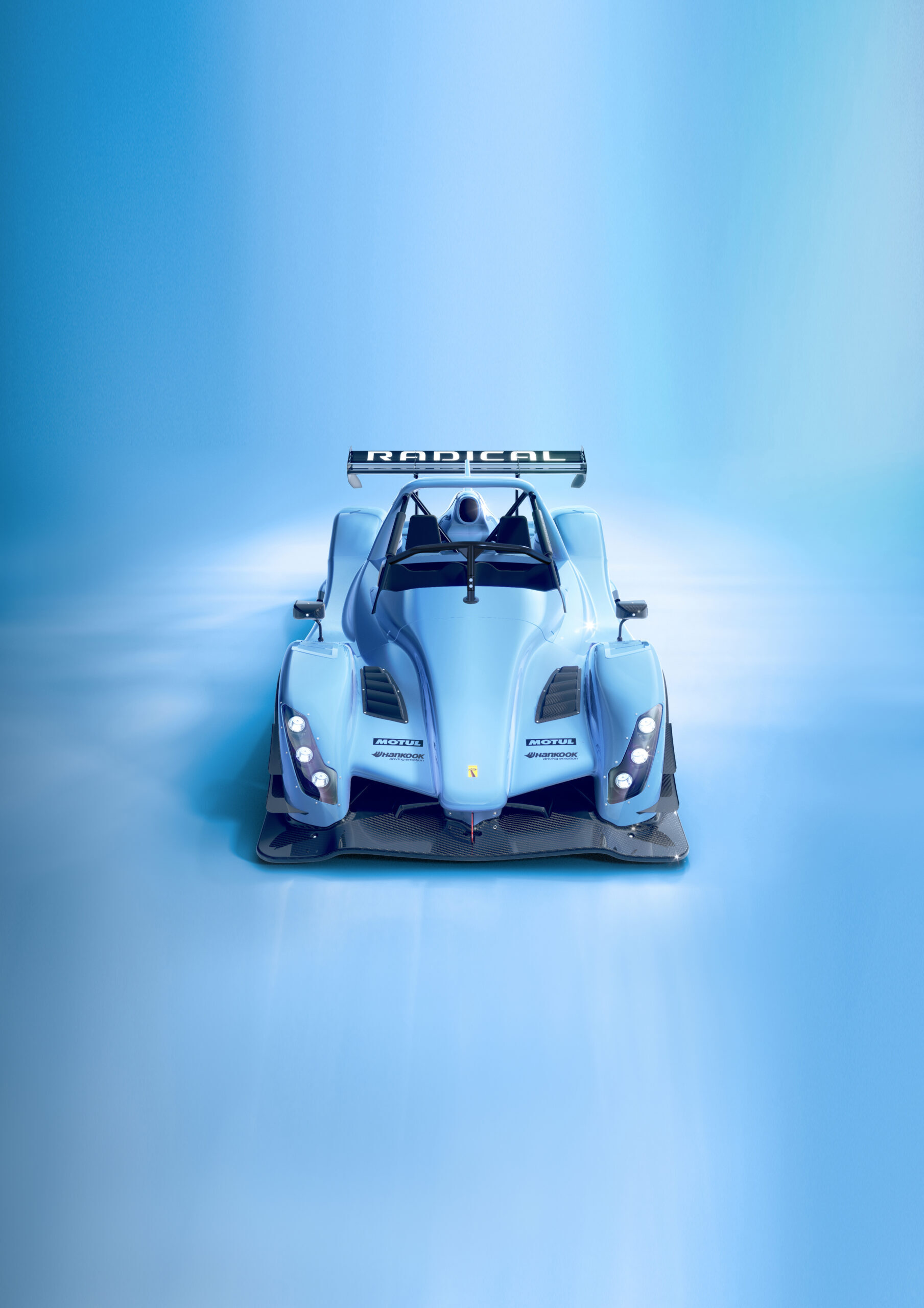

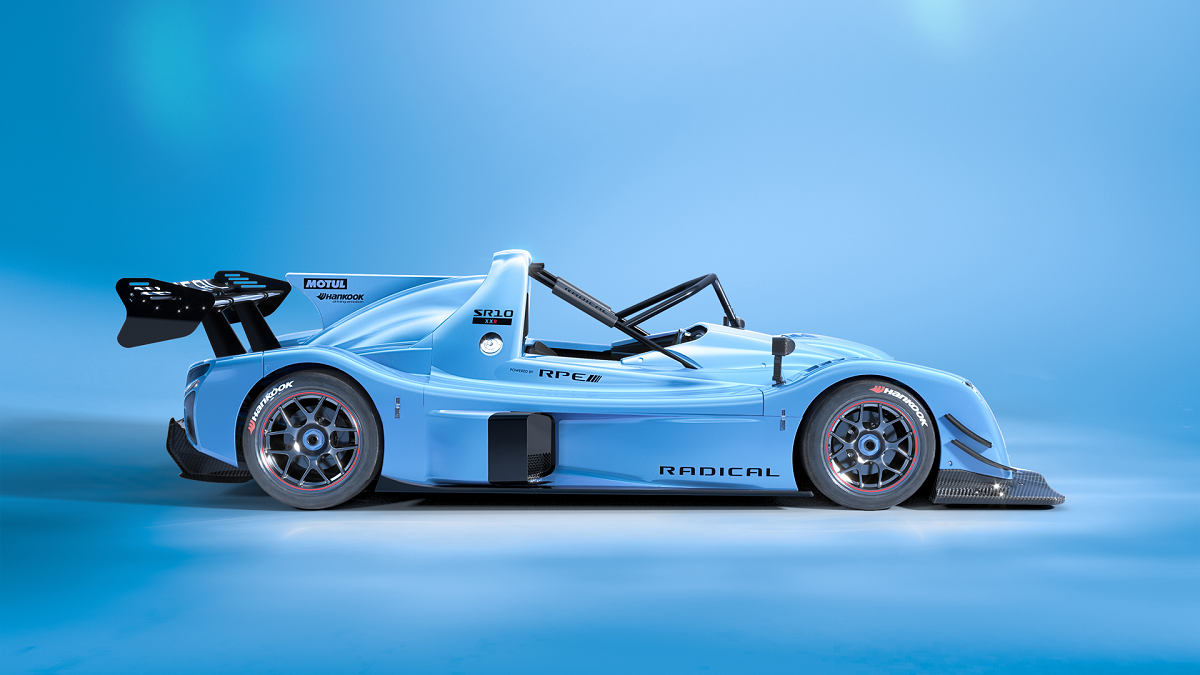

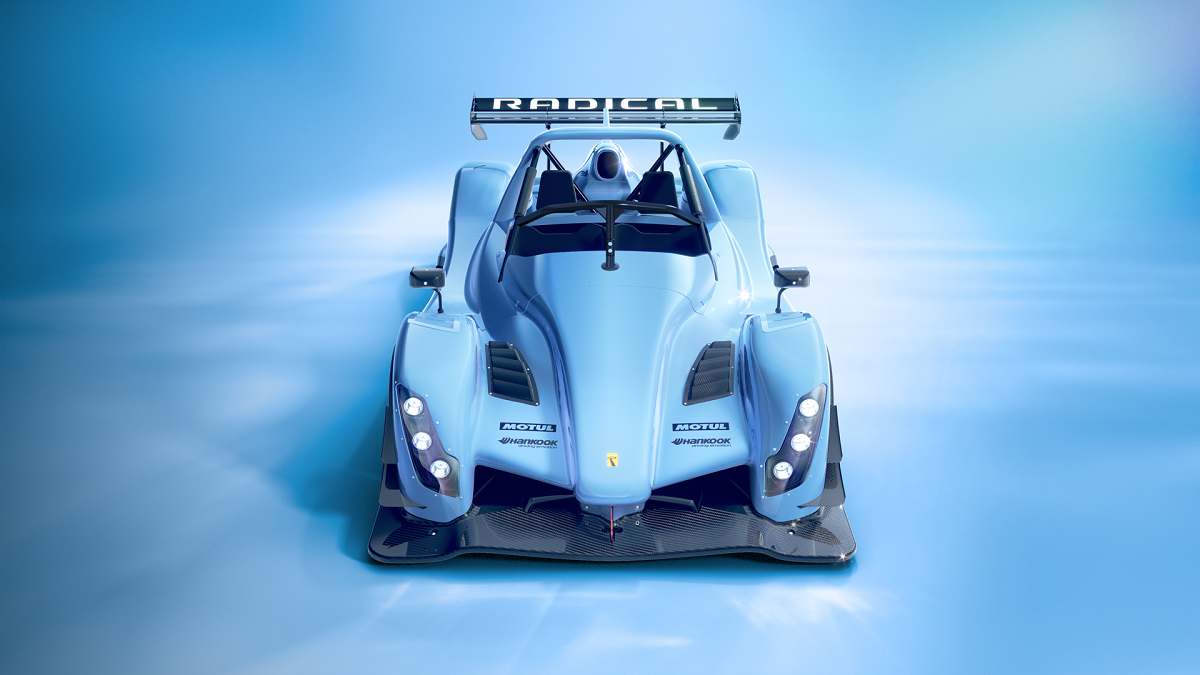

2023 Radical SR10 XXR Race Configuration
2023 Radical SR10 XXR Race Configuration
$188,224.00
Engine:
EcoBoost
Hours:
Year:
2023
Mileage:
mi
Engine
• RPE-Ford 2261cc, 425bhp & 380ft-Ib, turbocharged engine with direct injection, twin-independent variable cam timing and drive-by-wire throttle
• Custom Garrett turbocharger
• Forged motorsport pistons, connecting rods and bespoke dry-sump system
• Latest Life Racing ECU with detailed interrogation function for maintenance and analysis
• High-flow racing exhaust system
Transmission
• Six-speed Hewland sequential transaxle
• Radical developed paddle-activated gearshift system with auto-blipper
• Automatic torque-biasing limited slip differential
• Mid-engined, rear-wheel-drive
Suspension
• Fully adjustable Nik-link suspension system, front and rear unequal length top and bottom wishbones, fabricated uprights, front and rear adjustable pushrods
• 2022 One-piece cast Forged centre locked hubs
• Interchangeable roll bars
• Intrax triple-adjustable dampers with Anti-Roll Control (ARC) technology
Brakes, Wheels & Tires
• Radical four-pot calipers on 315mm x 35mm front & rear fully-floating 48-vane disc brakes
• Front & rear brake cooling
• Radical XXR design, cast aluminium wheels – 8″ × 15″ dia. front and 10.5″ × 16″ dia. rears
• Bespoke slick & wet tire options
Bodywork
Accordion Content
Cockpit
• FIA specification, foam filled 77L fuel cell
• Full electronic fire extinguisher system
Electronics
• Solid-state AiM Technologies Power Distribution Module (PDM) with Controller Area Network (CAN) linked wiring and telemetry
• Data integration allowing additional data logging including tire pressure and temperature monitoring, and laser ride height logging
Dimensions & Weight
• Length: 4077 mm (160.5 in)
• Width: 1799 mm (70.8 in)
• Height: 1093 mm (43.0 in)
Other
Options:
• Electronically adjustable power-assisted steering
• Racing fuel sampling/drain kit
• Trickle charger and jump starter pack
• Carbon-composite high downforce front dive planes
• Brake pressure and steering logging sensors
• Race tyre pressure and temperature monitoring system
